Three-point bending testly exception is step 5 (around the peak of the load-displacement curve),
in which the initial prediction is not sufficiently close to the exact solution,
and the quadratic rate of convergence is attained only after iteration number 7.

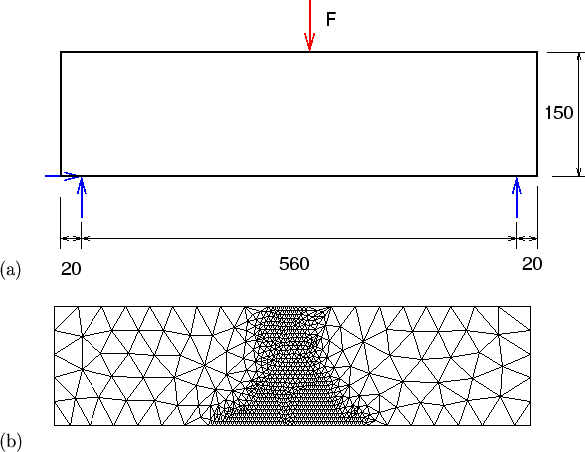

<span>Figure 1:
Three-point bending test: (a) specimen geometry and loading,
(b) finite element mesh

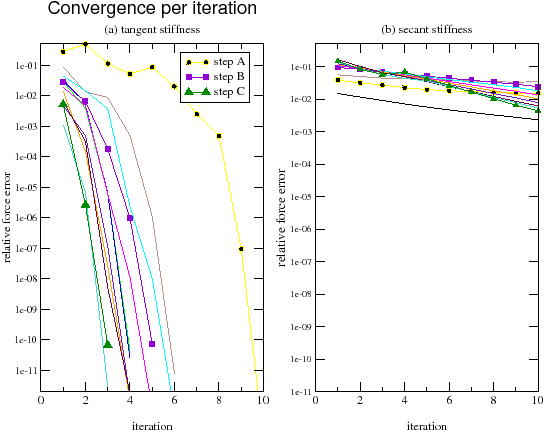

Figure 2:
Three-point bending test: convergence characteristics
Figure 3:
Three-point bending test: load displacement diagram
The relative efficiency of the strategies using the secant or tangent stiffness
matrices strongly depends on Summary
