Question

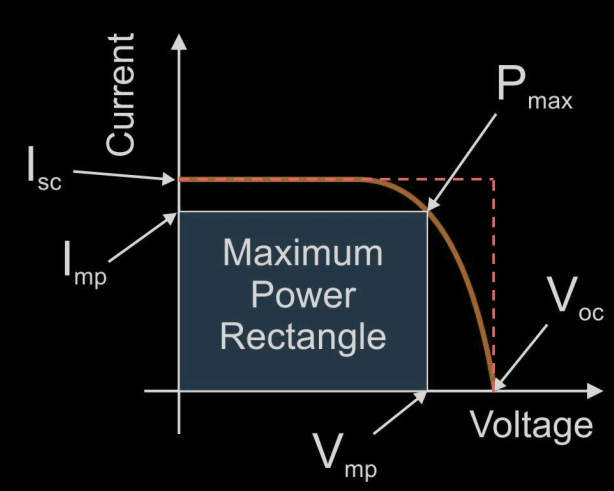

太阳能电池的最大功率、填充系数、以及能量转化效率：[...]
Answer
- 最大功率（Maximum Power）：\(P_{max}=I_{mp}V_{mp}\)
- 填充系数（Fill Factor）：\(FF=\frac{I_{mp}V_{mp}}{I_{SC}V_{OC}}\)
- 能量转化效率（Power Conversion Efficiency）：\(\eta=\frac{P_{max}}{P_{in}}=\frac{V_{mp}I_{mp}}{P_{in}}=\frac{FF\cdot V_{OC}I_{SC}}{P_{in}}\)
Tags
#has-images
Question
太阳能电池的最大功率、填充系数、以及能量转化效率：[...]
Answer
?
Tags
#has-images
Question
太阳能电池的最大功率、填充系数、以及能量转化效率：[...]
Answer
- 最大功率（Maximum Power）：\(P_{max}=I_{mp}V_{mp}\)
- 填充系数（Fill Factor）：\(FF=\frac{I_{mp}V_{mp}}{I_{SC}V_{OC}}\)
- 能量转化效率（Power Conversion Efficiency）：\(\eta=\frac{P_{max}}{P_{in}}=\frac{V_{mp}I_{mp}}{P_{in}}=\frac{FF\cdot V_{OC}I_{SC}}{P_{in}}\)
